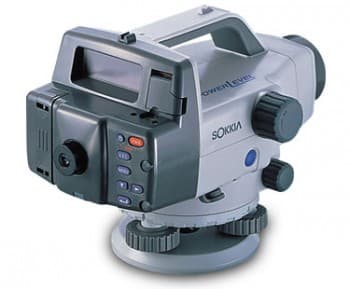

SDL30 Digital Level

Sokkia

Levels

SDL30 Digital Level

High-accuracy digital level designed for fast, reliable measurement across challenging field environments.

متوفر لدى

Surveying Systems Tunisia

موزع معتمد لـ Topcon و Sokkia

نظرة عامة على المنتج

أداء احترافي لأعمال المسح.

The Sokkia SDL30 digital level provides fast and accurate height and distance measurement across a wide range of field conditions. It is designed to maintain reliable performance in challenging environments including low light, bright sunlight, tunnels, vibration and heat shimmer.

الميزات الرئيسية

أبرز مزايا المنتج

High accuracy in challenging environments

Four measurement modes

2000-point internal memory

32x telescope magnification

Pendulum compensator with magnetic damping

Up to 8.5 hours continuous operation

المواصفات التقنية

التفاصيل التقنية

Electronic Height Accuracy
1.0 mm with fiberglass RAB-Code staff
Measuring Range
1.6 to 100 m
Magnification
32x
Height Resolution
0.0001 / 0.001 m
Measurement Modes
Single-fine / Repeat-fine / Average / Tracking
Data Storage
2,000 points
Communication
RS-232C
Protection
IPX4
Operating Temperature
-20°C to +50°C
Operating Time
More than 8.5 hours
Weight
2.4 kg

مجالات الاستخدام

مصمم لسير العمل الاحترافي.

Precision levellingConstruction surveyingElevation measurementTunnel measurementInfrastructure surveyingGeneral surveying

الوثائق

كتيبات المنتج

اطلع على وثائق الشركة المصنعة المتوفرة لهذا المنتج.

SDL30 Digital Level الكتيب

تحميل PDF

مهتم بهذا المنتج؟

تواصل مع فريقنا لمعرفة المزيد عن SDL30 Digital Level.

طلب عرض سعر
