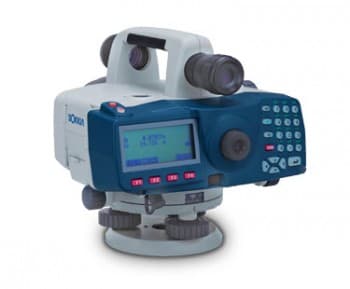

SDL1X Digital Level

Sokkia

Levels

SDL1X Digital Level

High-precision digital level with intelligent autofocus for demanding elevation and distance measurement.

Request a QuoteDownload Brochure

Available through

Surveying Systems Tunisia

Authorised Topcon & Sokkia Distributor

Product Overview

Professional surveying performance.

The Sokkia SDL1X is a high-precision digital level designed for applications where measurement accuracy and productivity are critical. Intelligent autofocus, a dual-axis tilt sensor, onboard measurement programs and extensive data storage support precise and efficient field workflows.

Key Features

Product highlights

0.2 mm precision with BIS30A staff

Intelligent autofocus

Dual-axis tilt sensor

Onboard measurement and recording programs

10,000-point internal memory

USB and SD card support

Optional Bluetooth wireless communication

Technical Specifications

Technical details

Electronic Height Accuracy
0.2 mm with BIS30A staff
Measuring Range
1.6 to 100 m
Magnification
32x
Measurement Time
2.5 s single / 1 s rapid-repeat
Compensator
Pendulum compensator with magnetic damping
Tilt Sensor
Dual-axis liquid tilt sensor
Data Storage
10,000 points
Communication
RS-232C / USB
Wireless Communication
Optional Bluetooth Class 1, up to 100 m
Protection
IP54
Operating Temperature
-20°C to +50°C
Operating Time
More than 9 hours with autofocus
Weight
3.7 kg

Applications

Built for professional workflows.

Precision levellingHigh-accuracy elevation measurementDeformation monitoringInfrastructure surveyingEngineering surveyingIndustrial measurement

Documents

Product Brochures

View the available manufacturer documentation for this product.

SDL1X Digital Level Brochure

Download PDF
